Domo water / steam circuit recirculation heat recovery boilers and steam can be built horizontally or vertically depending on the performance characteristics of the project.

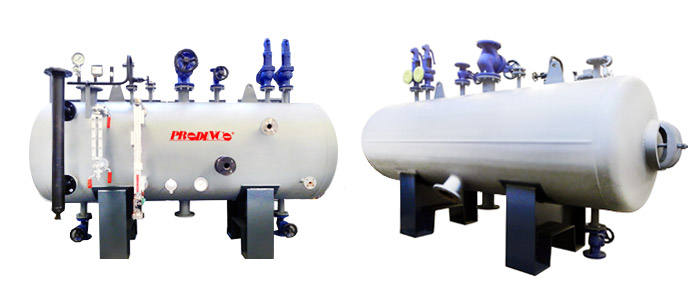

The Dome is responsible for separating the water / steam mixture from the boiler, leaving only the steam line for consumption, process, etc., to the required pressure.
Built mainly horizontal steel plate or the like A42B and vertical steel pipe ST-drawn seamless 35.8.1 or similar quality.
Equipped with support legs, tubing, inspection manhole closure autoclave type in horizontal large.
Thermal insulation rock wool blanket protected with stainless steel sheet. or galvanized according to project characteristics.
The Dome is responsible for separating the water / steam mixture from the boiler, leaving only the steam line for consumption, process, etc., to the required pressure.
Built mainly horizontal steel plate or the like A42B and vertical steel pipe ST-drawn seamless 35.8.1 or similar quality.
Equipped with support legs, tubing, inspection manhole closure autoclave type in horizontal large.
Thermal insulation rock wool blanket protected with stainless steel sheet. or galvanized according to project characteristics.
Elements associated incorporated
- Valves safety
- vent valve
- Dump valves
- Set of electrodes level
- Visual level reflection
- stainless Level. with foil and magnetic contacts
- Relative pressure transmitter
- Level Transmitter
- Temperature Transmitter PT-100
- Gauge
- Thermometer
- background action bleed valve pneumatic on / off
- continuous blowdown valve
- Automatic vent valve with pneumatic actuator on / off
